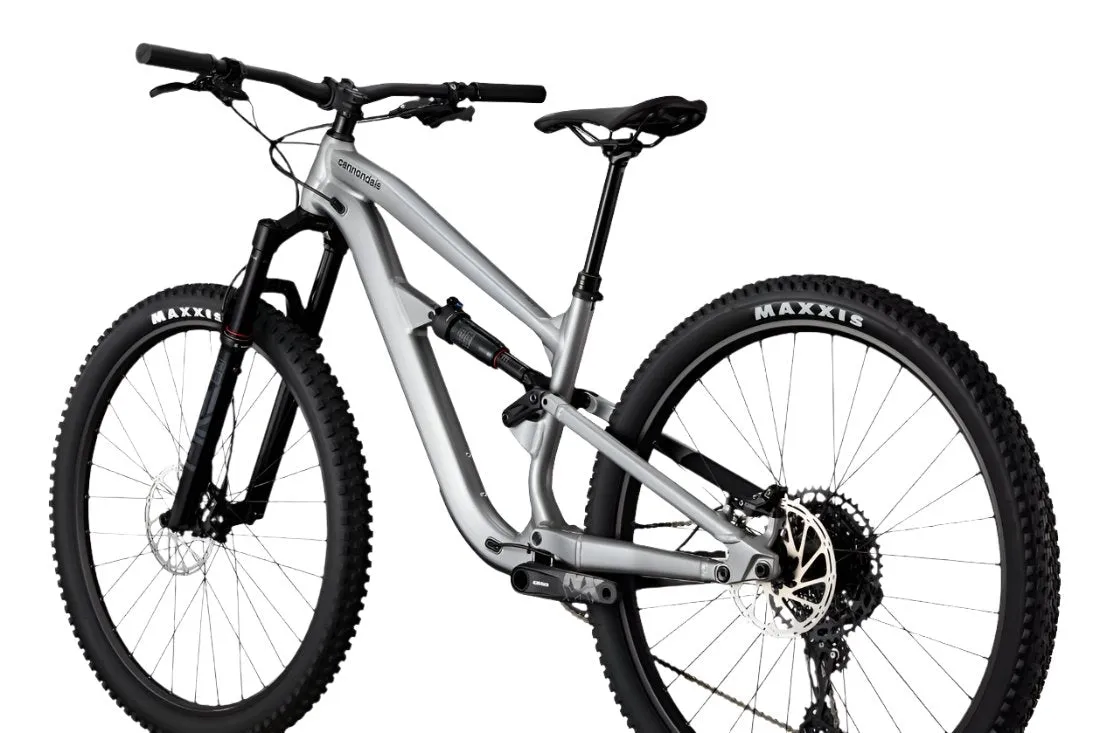

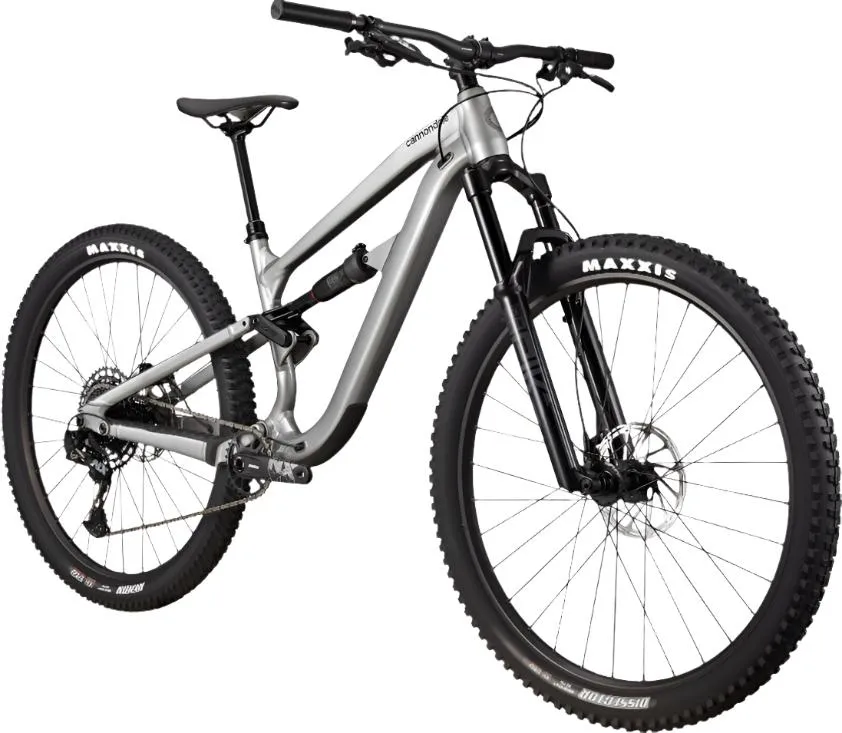

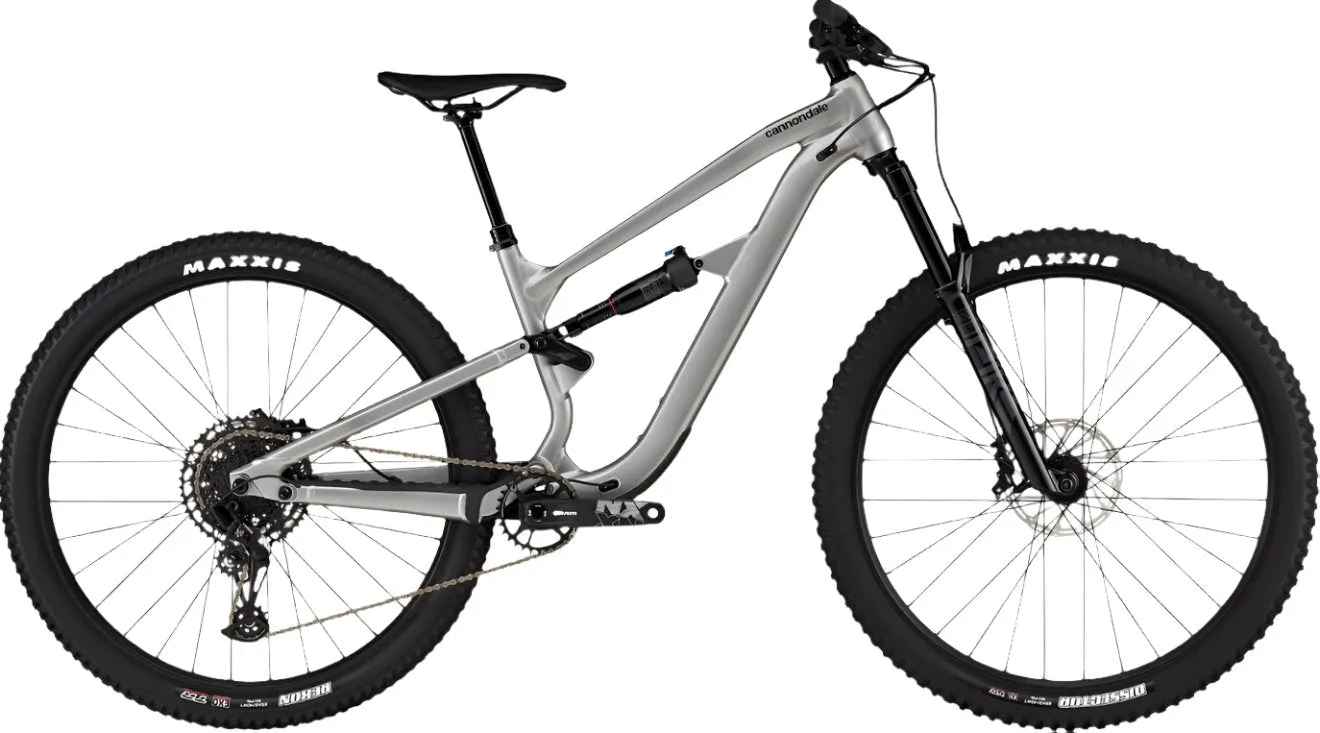

Name: Cannondale Habit 3 12 Speed SRAM NX Eagle Full Suspension Mountain Bike
SKU: 876273

Flow Seeker

The Cannondale Habit 3 12 Speed SRAM NX Eagle Full Suspension Mountain Bike is a trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun! Cannondale Habit 3 12 Speed SRAM NX Eagle Full Suspension Mountain Bike thrives out in the elements. The Cannondale Habit 3 12 Speed SRAM NX Eagle Full Suspension Mountain Bike is built for pure, unadulterated trail riding fun.

Highlights

SmartForm C1 Alloy Frame / SRAM NX Eagle 12-speed drivetrain
Rockshox Pike Select 140mm fork / Deluxe Select shock
SRAM G2 R 4-piston hydraulic discs / TranzX dropper post

Built for you.

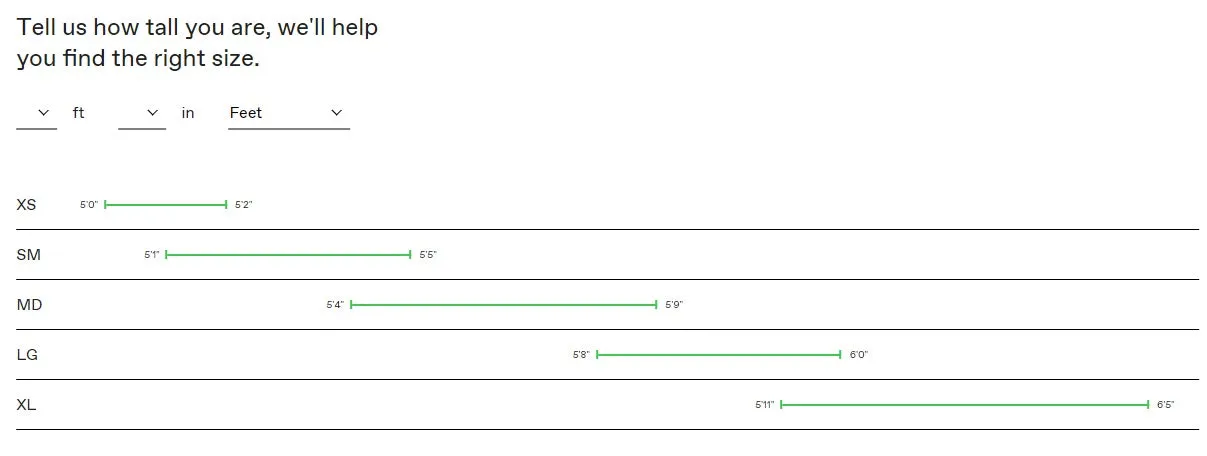

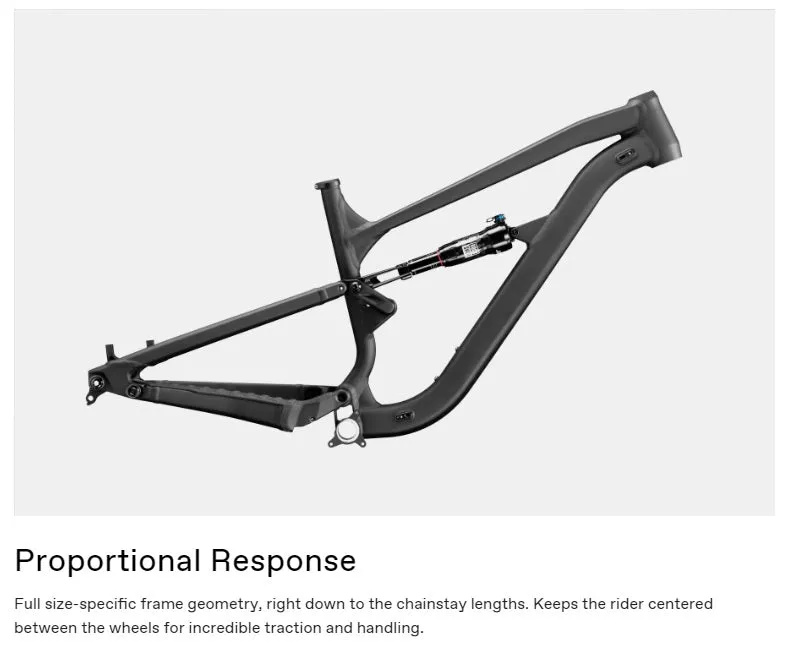

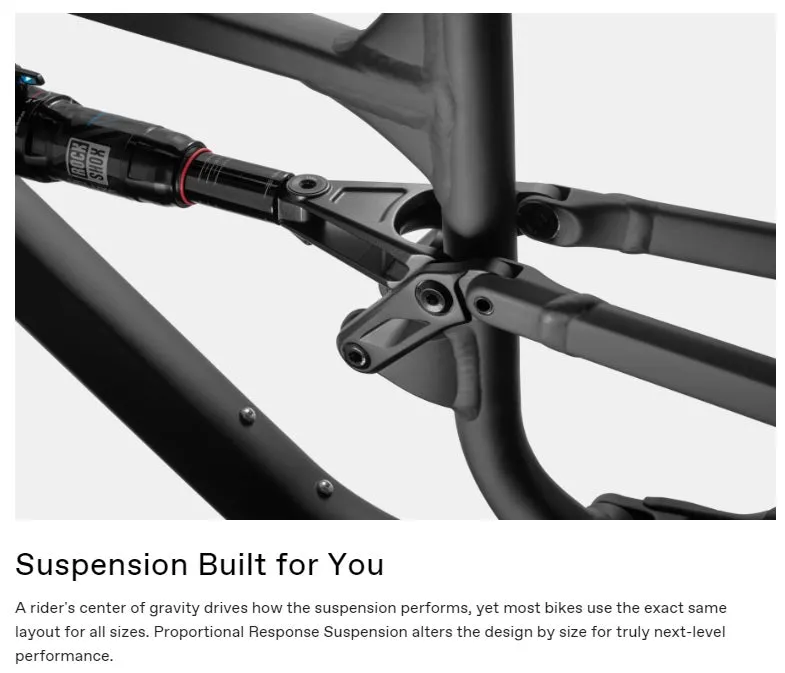

The Habit geometry is uniquely size specific. With Cannondale's Proportional Response Design, everything from the suspension layout to, the geometry —even the length of the chain stays — is completely customized by size. Performance built, just for you.

Blissfully Balanced

With a head tube angle of 65.5° and the seat tube set at 77.5°, you are sitting in the optimal position for powering uphill, shredding downhill, and stopping to smell the roses.

Easy to love

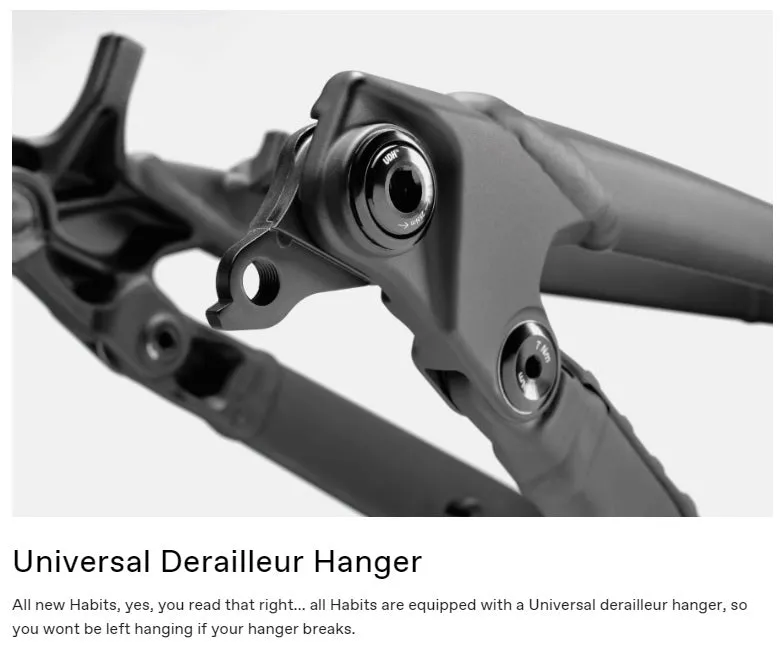

Keeping things simple and easy for the rider with threaded BBs, universal derailleur hanger, standard shock mount, internal cable routing, and an updated 55mm chain line standard for tire clearance. All designed to make it as easy as possible to live with and to love.

Specifications

Platform -
Model Name - Habit 3
Model Code - C23301U

FRAMESET

Frame - Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Fork - RockShox Pike Select, 140mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset
Headset - Integrated Sealed Bearing, Tapered

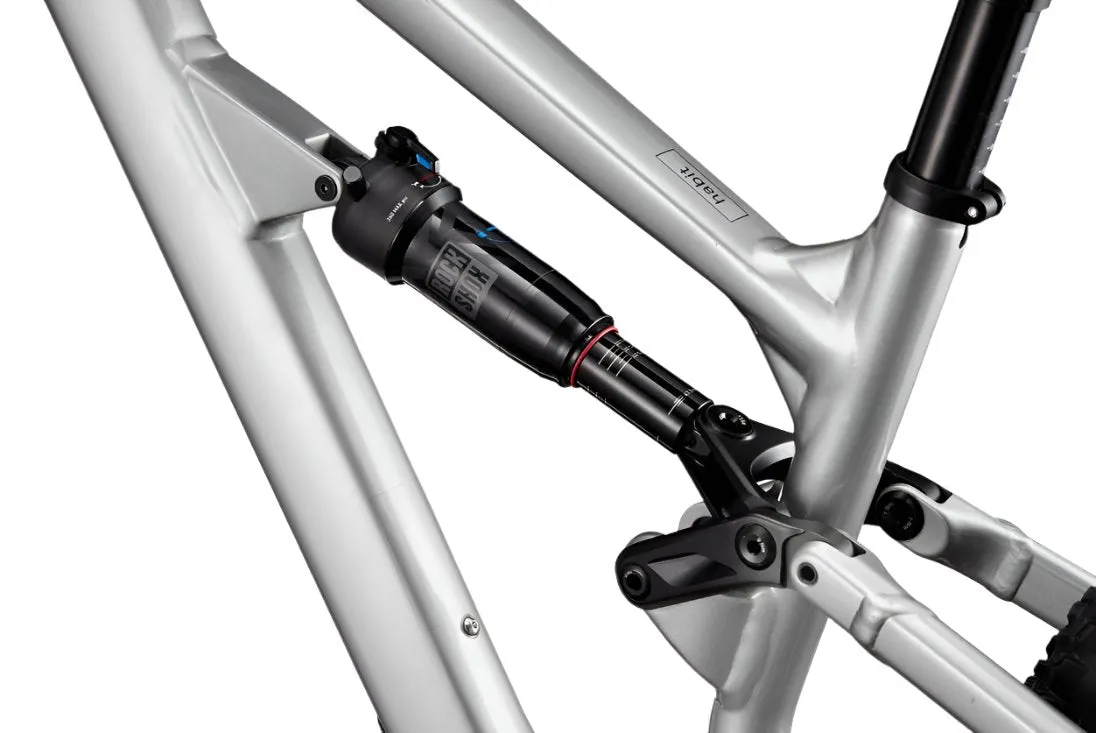

Rear Shock - RockShox Deluxe Select , DebonAir, 2-Pos mode adjust, adjustable rebound

DRIVETRAIN

Rear Derailleur - SRAM NX Eagle
Shifters - SRAM NX Eagle, 12-speed
Chain - SRAM SX Eagle, 12-speed

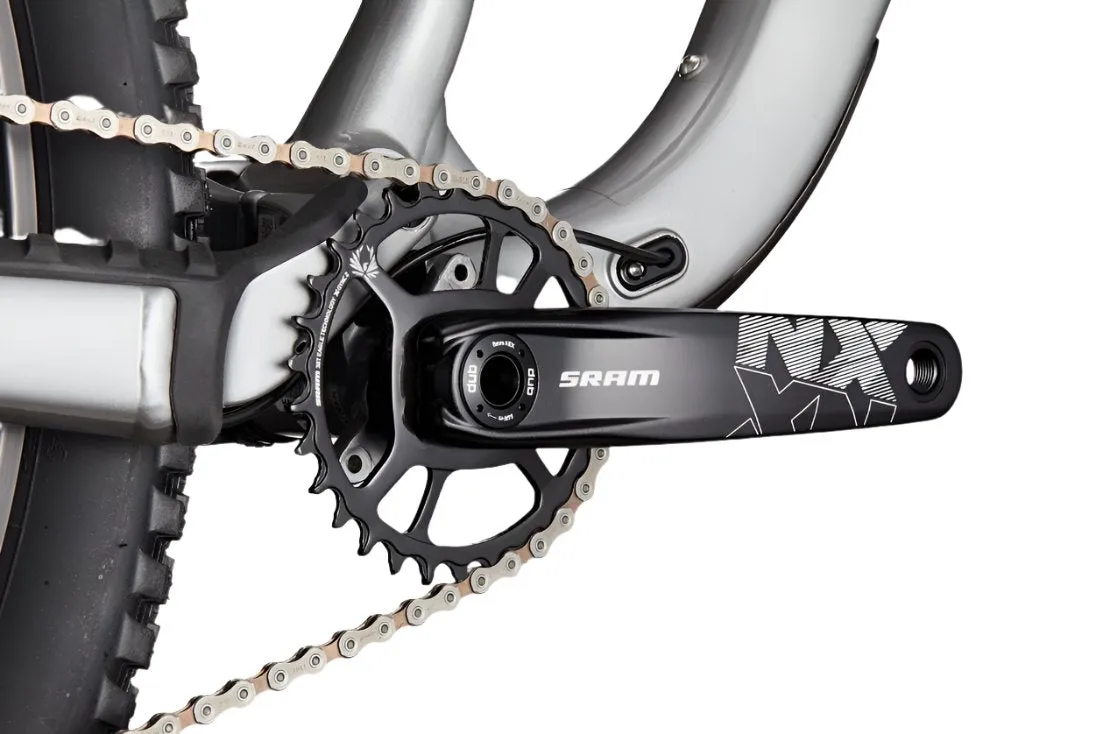

Crank - SRAM NX Eagle DUB, 30T, 55mm chainline
Rear Cogs - SRAM NX Eagle, 10-50, 12-speed
Bottom Bracket - SRAM DUB BSA MTB73 Wide

BRAKES

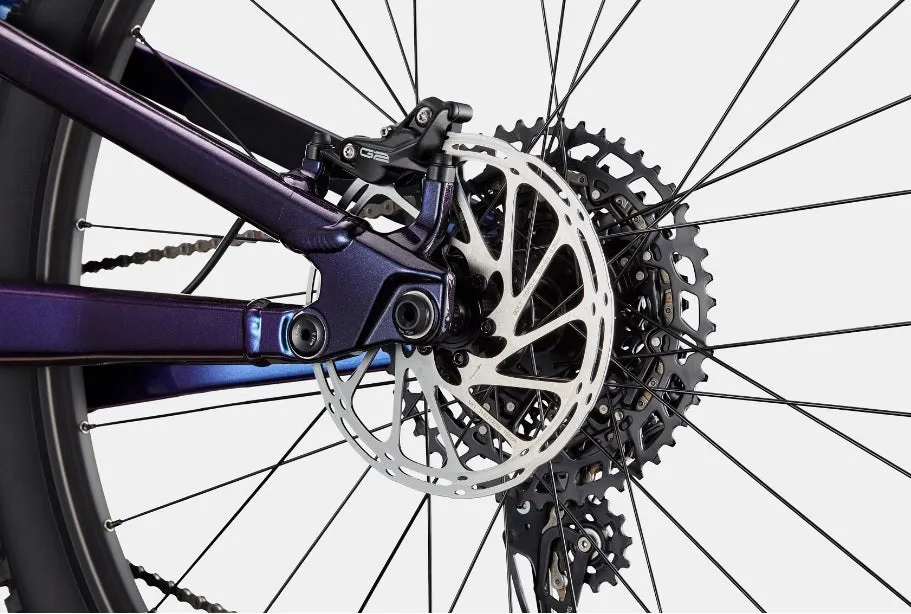

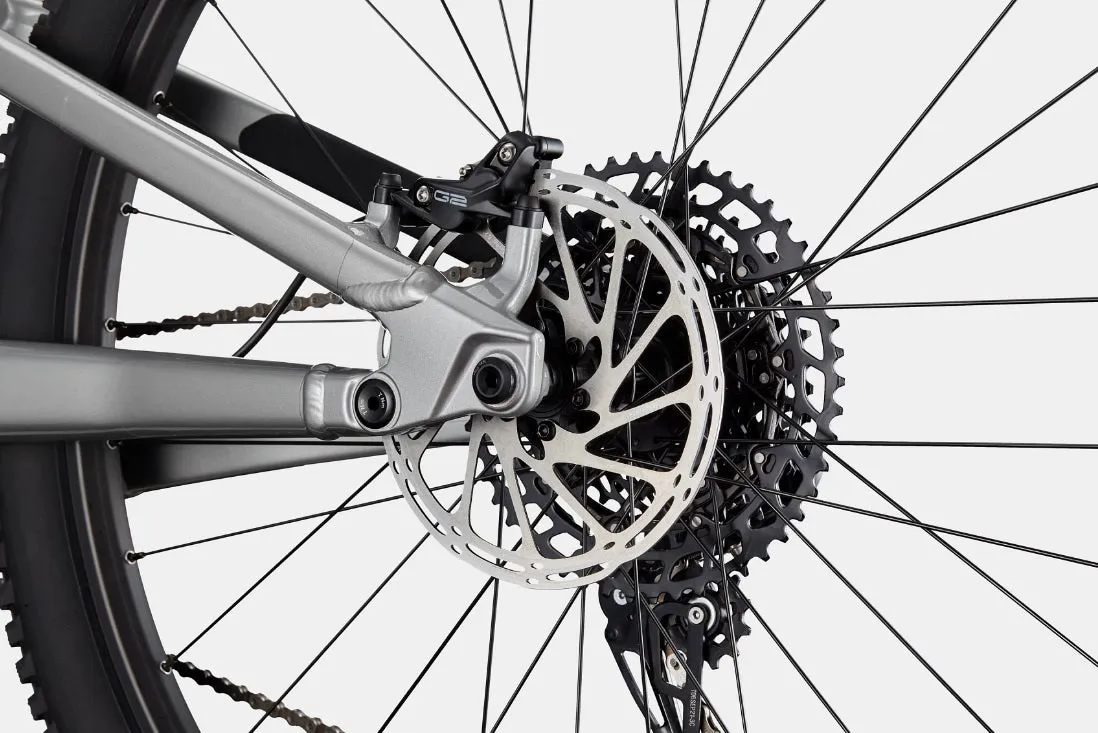

Brakes - SRAM G2 R hydraulic disc, 180/180mm CenterLine rotors
Brake Levers - SRAM G2 R hydraulic disc

WHEELS

Rims - Stan's NoTubes Arch D, 32h, tubeless ready
Spokes - Stainless Steel, 14g
Tires - (Front) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready, (Rear) Maxxis Rekon, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready
Tire Size - 2.4
Wheel Size - 29, 27.5 (XS)
Hubs - (Front) Shimano MT400, 15x110mm thru-axle / (Rear) Shimano MT410, 12x148mm thru-axle
Front Tire - Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready
Rear Tire - Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready

COMPONENTS

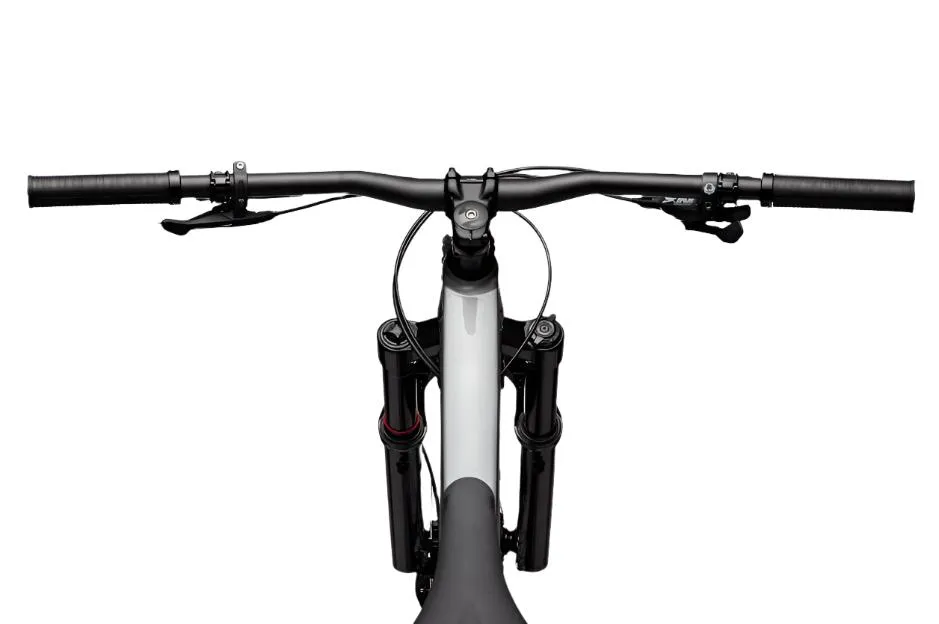

Handlebar - Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem - Cannondale 3, 6061 Alloy, 31.8, 0°
Grips - Cannondale TrailShroom
Saddle - Cannondale Scoop Shallow Sport, steel rails
Seatpost - TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)
